Rebuilding of the Land Rover FC101GS
Still Brakes and diffs
1

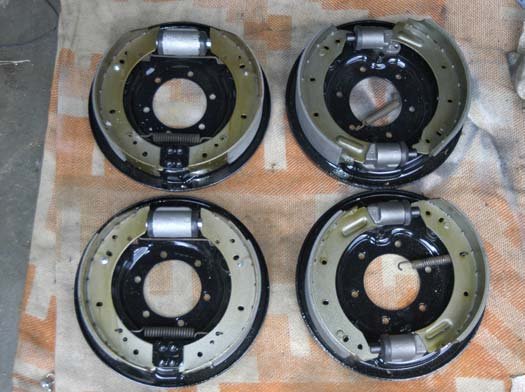

Brakes are finished. Brake anchor plate gridblasted, painted black and new wheelcylinders and brakeshoes
2

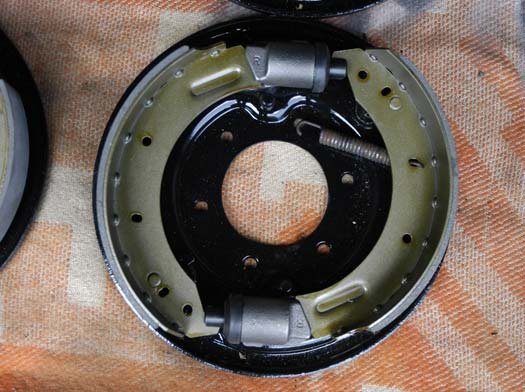

Rear brakes
3

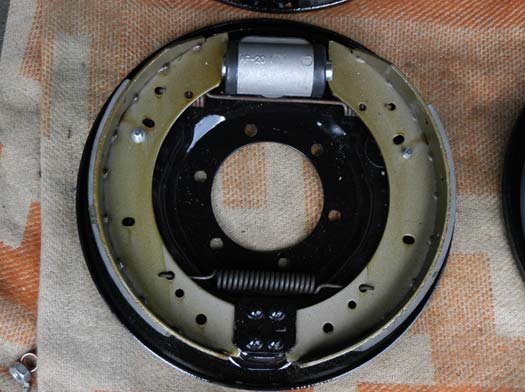

Front brakes
4

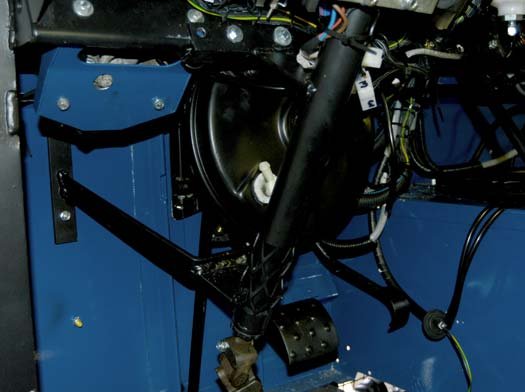

Defender servo mounted in the 101.
5

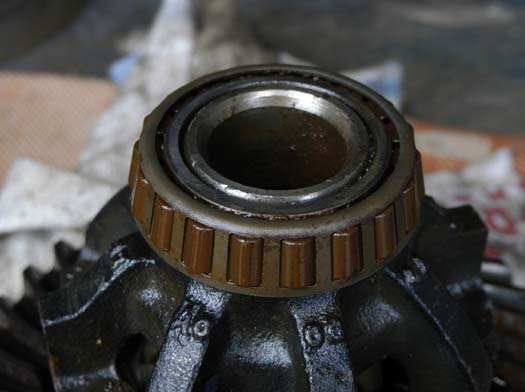

Bearing from the rearaxle diff. Don't looks very good to me.
Next job: order new ones and fitting....
6

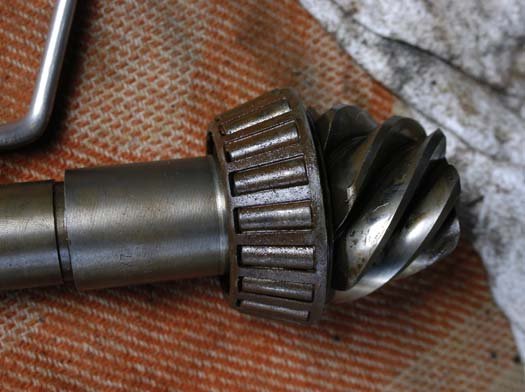

The bearing on the pinionaxle looks also bad and needed a new one.
